Key Specifications
Overview of the technical specifications.
Engine Power
343 kW / 1800 rpm
Torque
2200 Nm
Fuel Tank
600 L
Wheelbase
3400+1350 mm

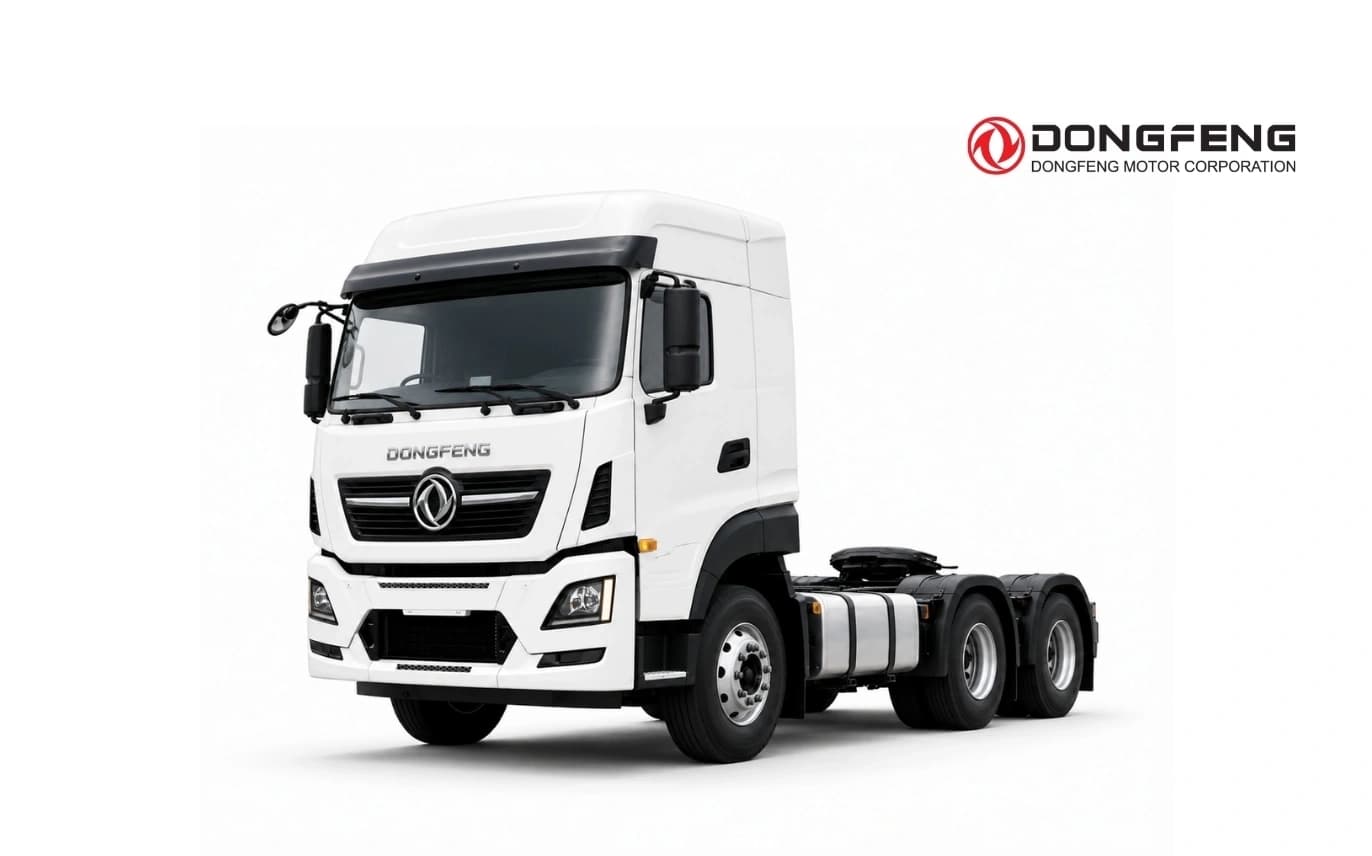

| Parameter | KL 6x4-465 HP |
|---|---|
| Overall chassis length(mm) | 7040 |
| Cab width(mm) | 2500 |
| Cab height(mm) | 3895 |
| Wheelbase(mm) | 3400+1350 |
| Front overhang(mm) | 1480 |
| Rear overhang(mm) | 810 |
| Engine type | dCi465-51 |
| Emission standard | Euro 5 |
| Maximum power(kW/rpm) | 343kW / 1800 rpm |
| Maximum torque(Nm/rpm) | 2200Nm / 1100-1600 rpm |
| Number of cylinders | 6 |
| Displacement(L) | 11.12 |
| Cylinder bore(mm) | 123 |
| Stroke(mm) | 156 |
| Engine system | Water cooled, turbocharged, after cooled, high-pressure common rail + SCR |
| Fuel tank type | Aluminium fuel tank |
| Fuel tank capacity(L) | 600 |
