Key Specifications
Overview of the technical specifications.
Operating Weight
49.9 ton
Engine Power
249 kW / 2100 rpm
Bucket Capacity
3.2 m³
Track Shoe Width
600 mm

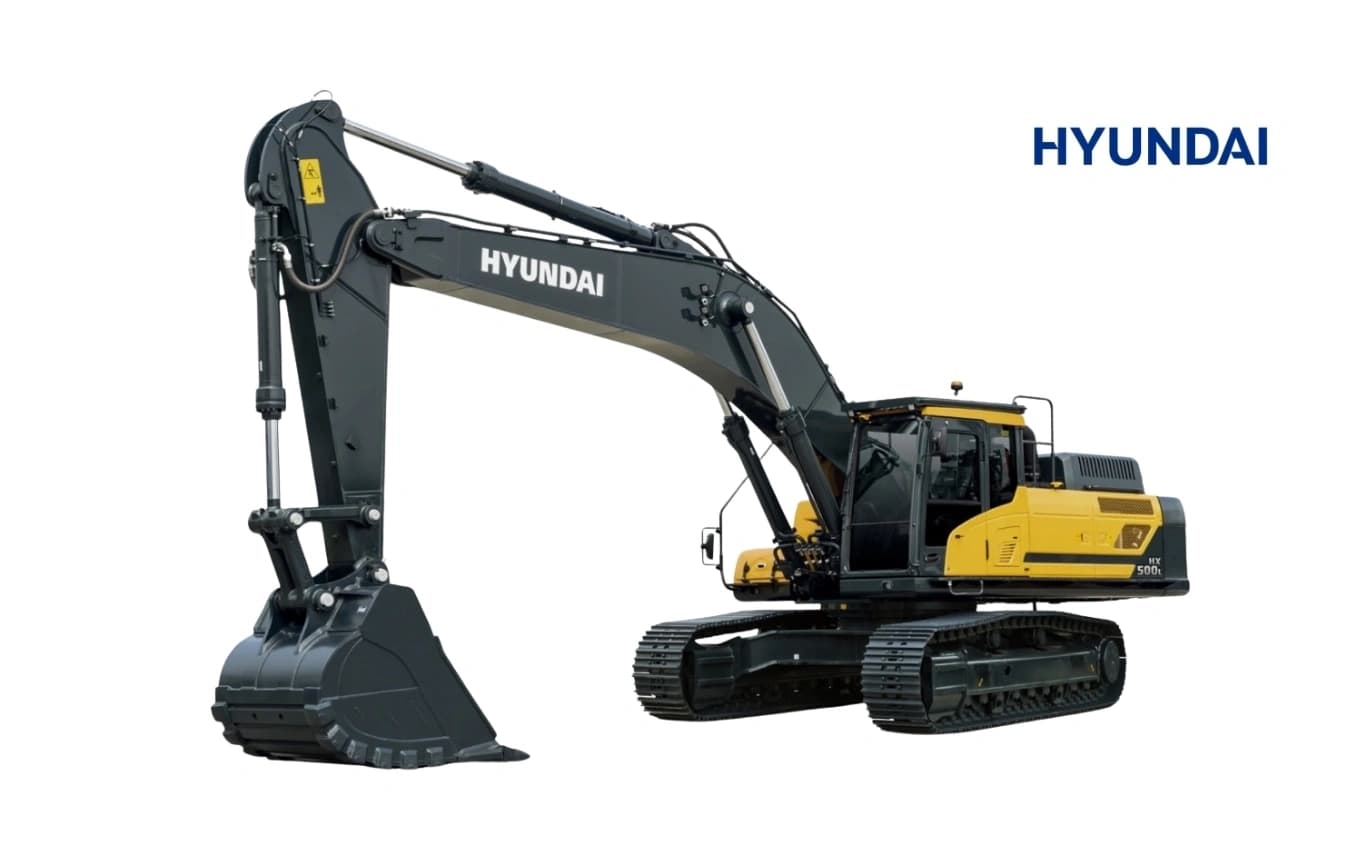

| Parameter | HX500L |
|---|---|
| Operating weight(kg) | 49900 |
| Engine power(kW/rpm) | 249 / 2100 |
| Bucket capacity(m³) | 3.2 |
| External dimensions(mm) | 12160*3540*3850 |
| Bucket rod digging force(kN) | 205 |
| Bucket digging force(kN) | 247.1 |
| Rotating speed(r/min) | 8.8 |
| Travel speed(km/h) | 5.5 |
| Maximum digging height(mm) | 11060 |
| Maximum digging distance(mm) | 12060 |
| Maximum digging depth(mm) | 7730 |
| Emissions (Indicated as per international standards) | TIER 3 |
