Key Specifications
Overview of the technical specifications.
Operating Weight
84 ton
Engine Power
380 kW / 1800 rpm
Bucket Capacity
4.04 m³
Track Shoe Width
700 mm

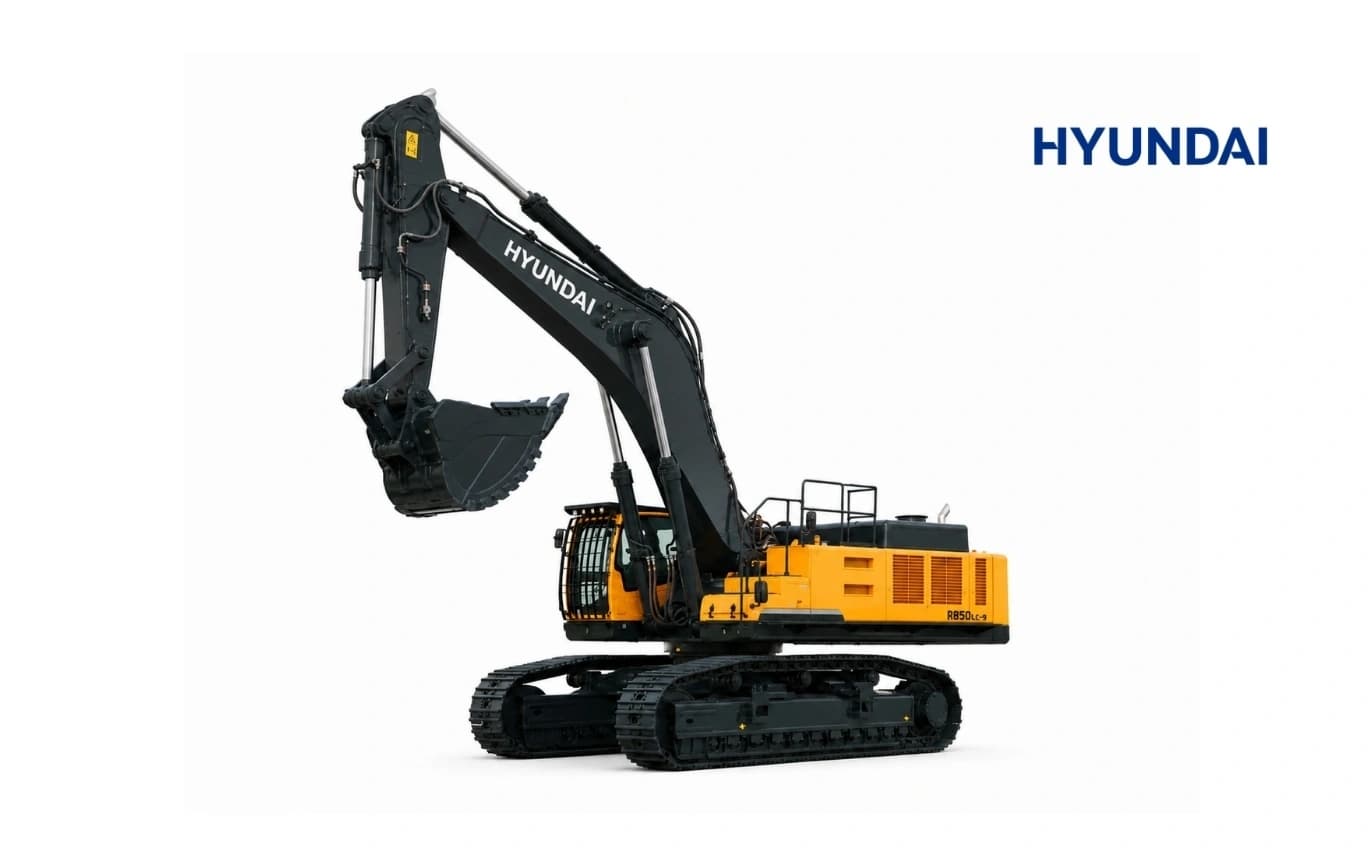

| Parameter | R850LC-9 |
|---|---|
| Operating weight(kg) | 84000 |
| Engine power(kW/rpm) | 380 / 1800 |
| Bucket capacity(m³) | 4.04 |
| External dimensions(mm) | 13100*4495*5040 |
| Bucket rod digging force(kN) | 363.7 |
| Bucket digging force(kN) | 483.6 |
| Rotating speed(r/min) | 6.2 |
| Travel speed(km/h) | 3.8 |
| Maximum digging height(mm) | 11750 |
| Maximum digging distance(mm) | 12250 |
| Maximum digging depth(mm) | 7240 |
| Emissions (Indicated as per international standards) | TIER 3 |
