Key Specifications
Overview of the technical specifications.
Operating Weight
9.58 ton
Engine Power
70 kW / 2200 rpm
Blade Capacity
1.9 m³
Track Shoe Width
460 mm

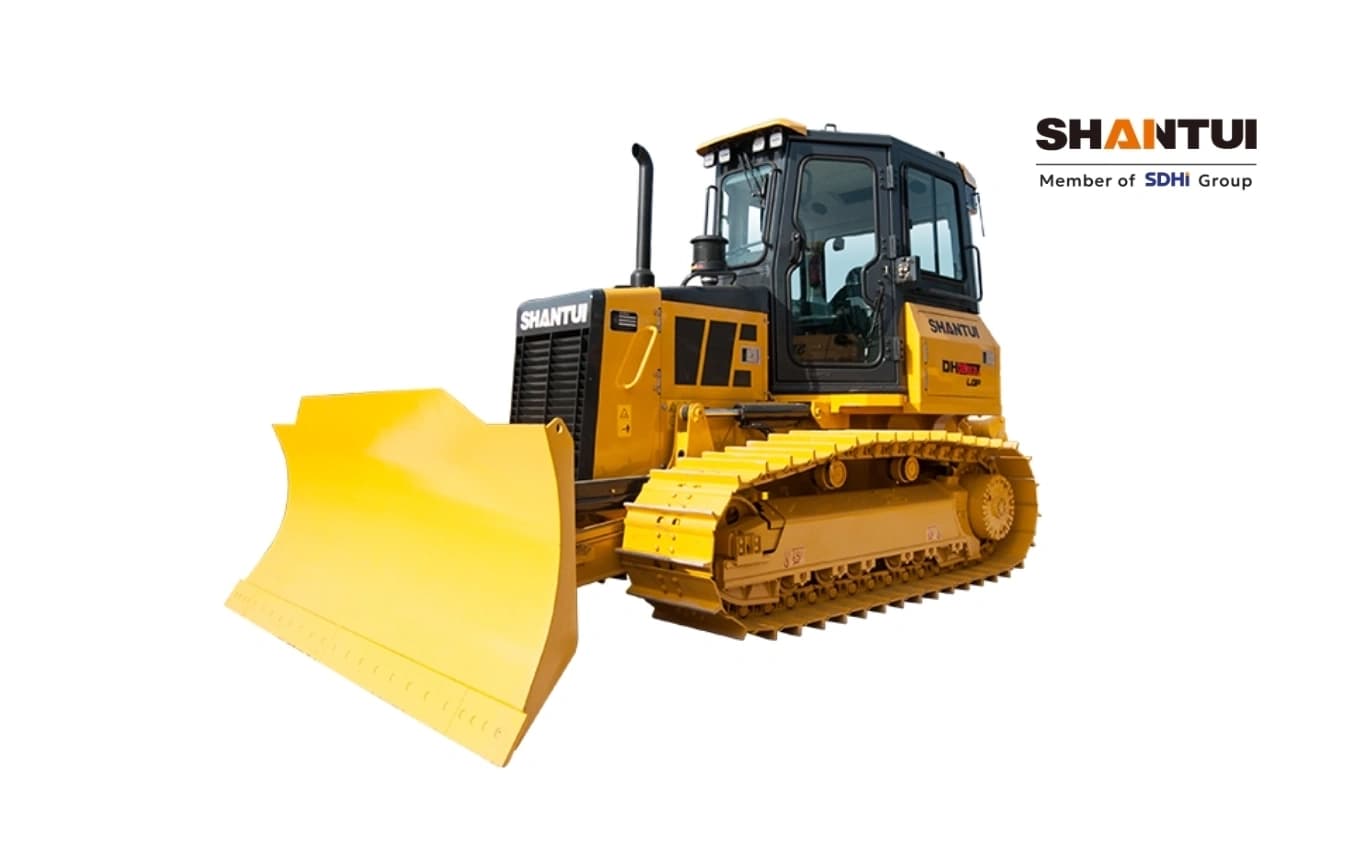

| Parameter | DH08-B3XL |
|---|---|
| Operating weight(kg) | 9580 |
| Engine brand | WEICHAI |
| Rated power/rated speed(kW/rpm) | 70 / 2200 |
| Machine external dimensions(mm) | 4568*2680*2950 |
| Track center distance(mm) | 1650 |
| Track shoe width(mm) | 460 |
| Ground contact length(mm) | 2225 |
| Fuel tank capacity(L) | 197 |
| Blade type | PAT |
| Blade capacity(m³) | 1.93 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
