Key Specifications
Overview of the technical specifications.
Operating Weight
18.46 ton
Engine Power
131 kW / 1850 rpm
Blade Capacity
3 m³
Track Shoe Width
1100/950

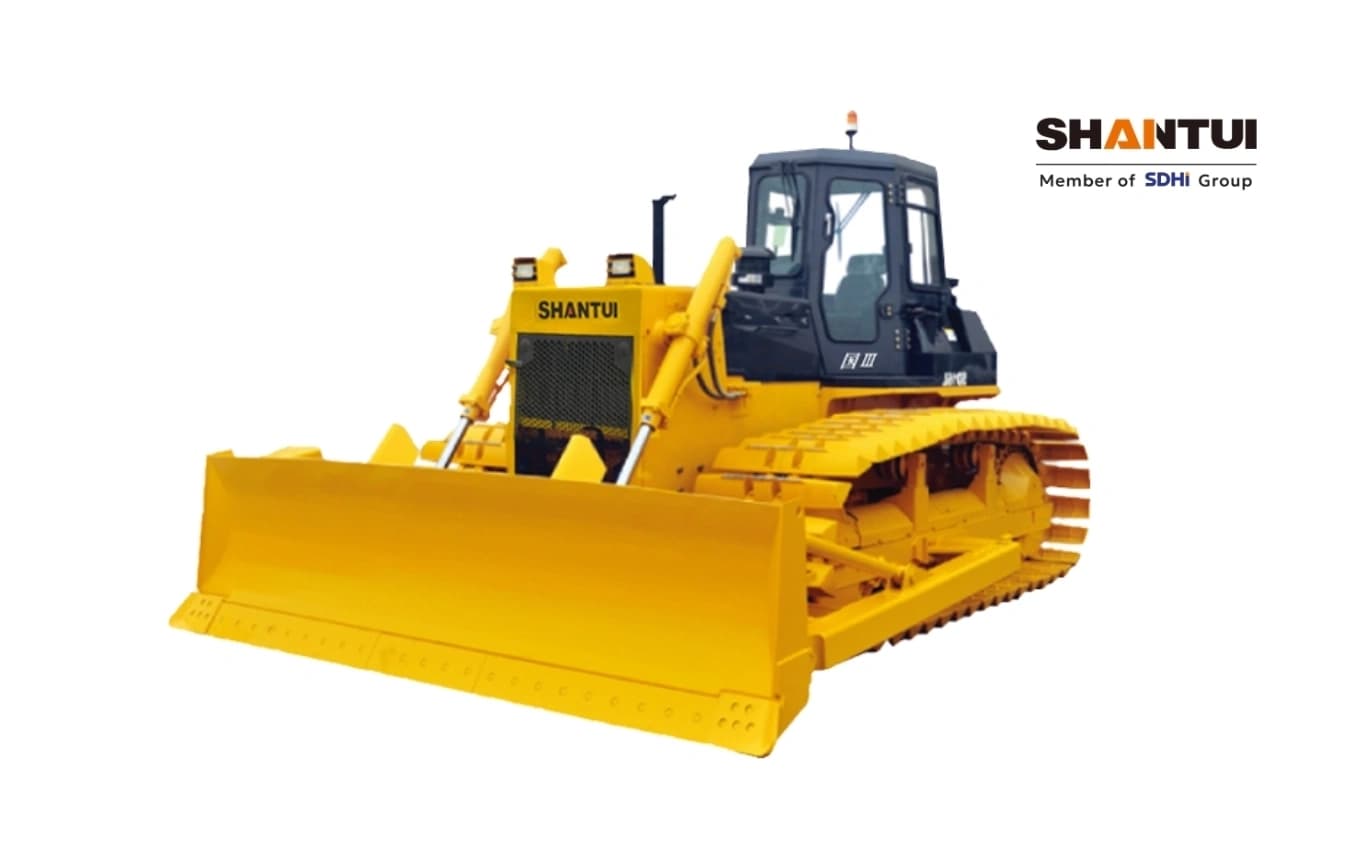

| Parameter | SD16L |
|---|---|
| Operating weight(kg) | 18460 |
| Engine brand | WEICHAI WD10G178E25 |
| Rated power/rated speed(kW/rpm) | 131 / 1850 |
| Machine external dimensions(mm) | 5262*4150*3074 |
| Track center distance(mm) | 2300 |
| Track shoe width(mm) | 1100/950 |
| Ground contact length(mm) | 2935 |
| Fuel tank capacity(L) | 315 |
| Blade type | Straight tilting blade |
| Blade capacity(m³) | 3 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
