Key Specifications
Overview of the technical specifications.
Operating Weight
17.5 ton
Engine Power
140 kW / 1900 rpm
Blade Capacity
4.5 m³
Track Shoe Width
510/560/610

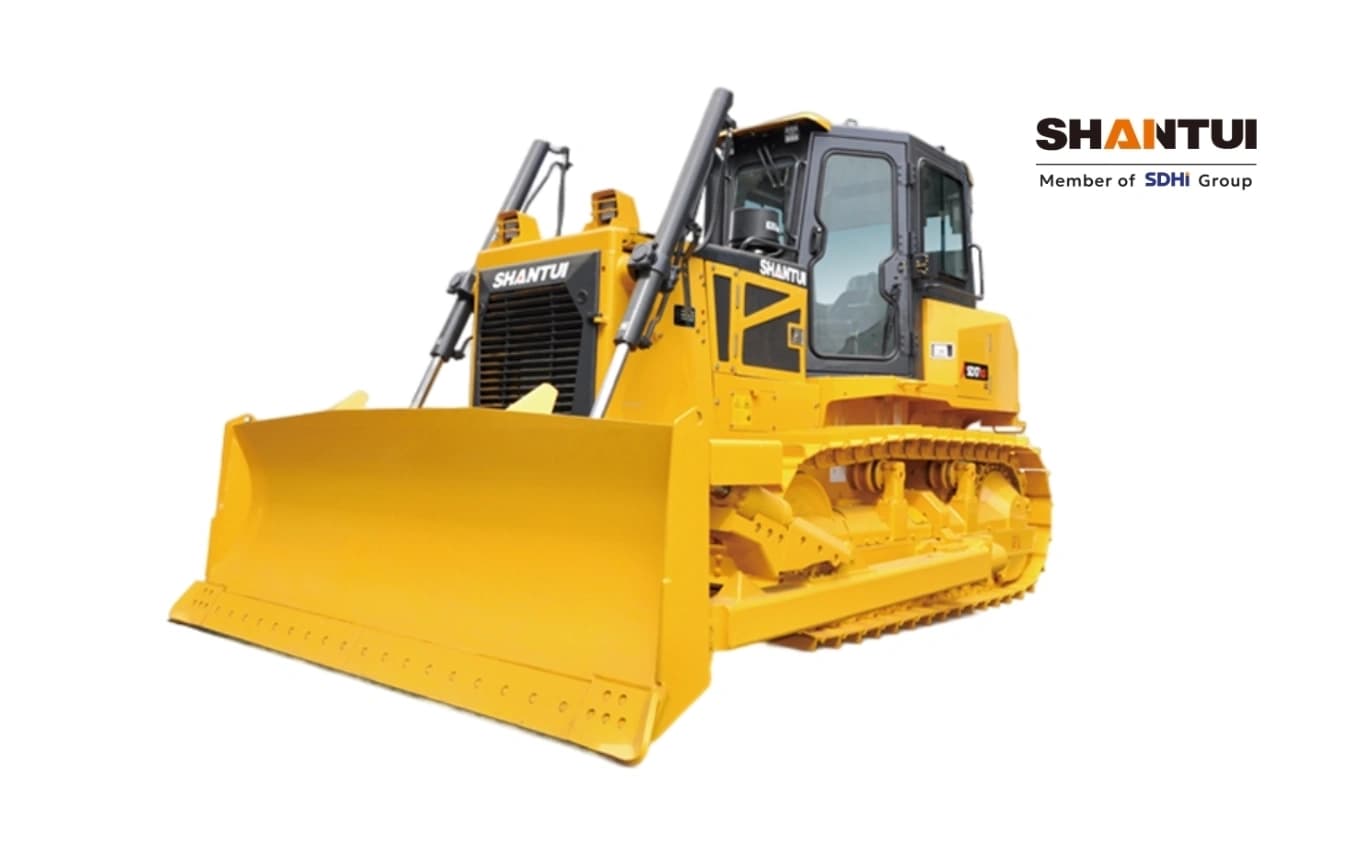

| Parameter | SD17-B3XL |
|---|---|
| Operating weight(kg) | 17500 |
| Engine brand | WEICHAI WD10G190E214 |
| Rated power/rated speed(kW/rpm) | 140 / 1900 |
| Machine external dimensions(mm) | 5450*3452*3200 |
| Track center distance(mm) | 1880 |
| Track shoe width(mm) | 510/560/610 |
| Ground contact length(mm) | 2635 |
| Fuel tank capacity(L) | 338 |
| Blade type | Straight-tilt |
| Blade capacity(m³) | 3.2 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
