Key Specifications
Overview of the technical specifications.
Operating Weight
25.7 ton
Engine Power
175 kW / 1800 rpm
Blade Capacity
5.2 m³
Track Shoe Width
910 mm

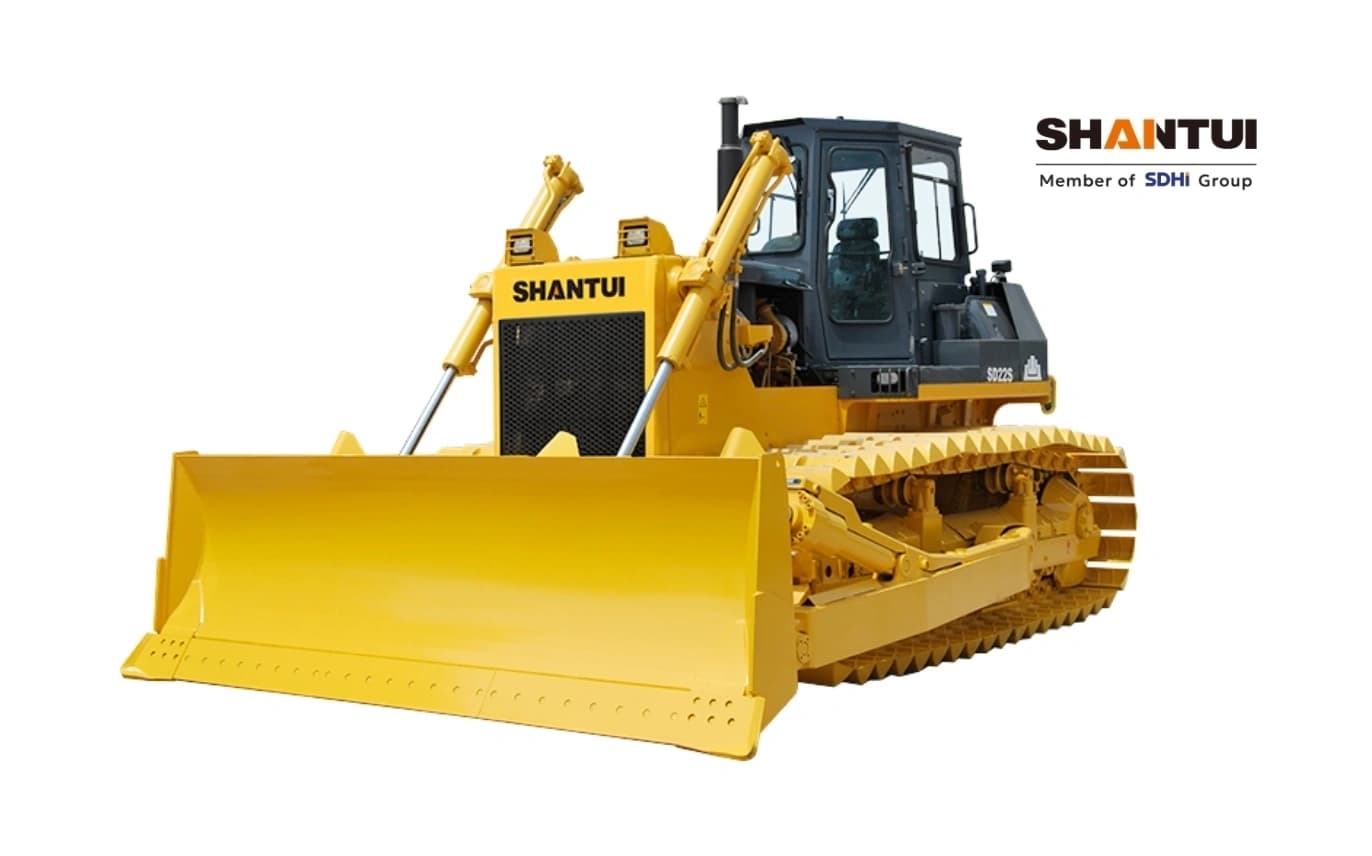

| Parameter | SD22S |
|---|---|
| Operating weight(kg) | 25700 |
| Engine brand | Cummins / Weichai |
| Rated power/rated speed(kW/rpm) | 175 / 1800 |
| Machine external dimensions(mm) | 6290*4365*3402 |
| Track center distance(mm) | 2250 |
| Track shoe width(mm) | 910 |
| Ground contact length(mm) | 3480 |
| Fuel tank capacity(L) | 450 |
| Blade type | Straight tilting blade |
| Blade capacity(m³) | 5.2 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
