Key Specifications
Overview of the technical specifications.
Operating Weight
36 ton
Engine Power
247 kW / 2000 rpm
Bucket Capacity
2.1 m³
Track Shoe Width
600 mm

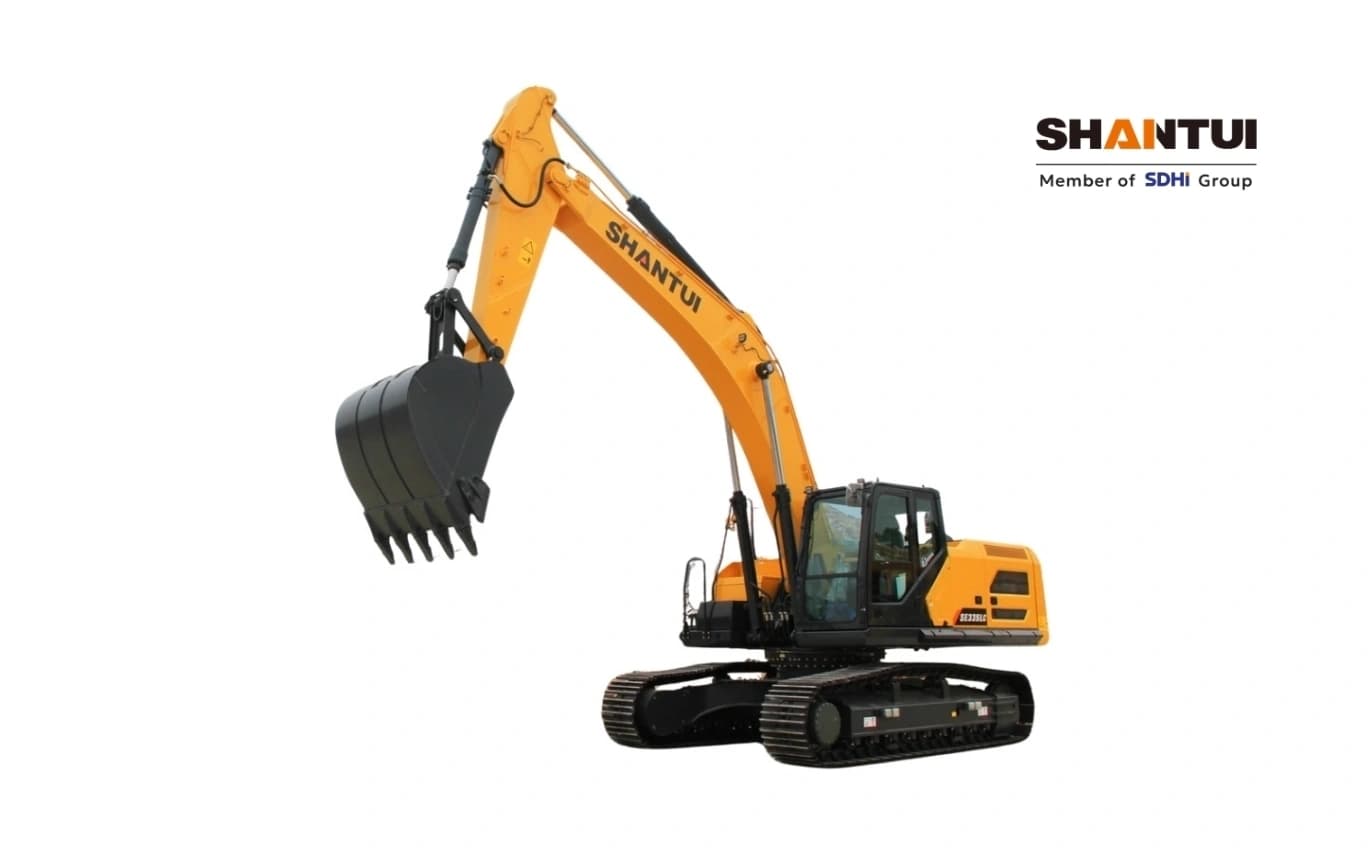

| Parameter | SE350LCW |
|---|---|
| Operating weight(kg) | 34500 |
| Engine power(kW/rpm) | 182 / 2000 |
| Bucket capacity(m³) | 1.6 / 1.85 |
| External dimensions(mm) | 11416*3260*3520 |
| Bucket rod digging force(kN) | 158 |
| Bucket digging force(kN) | 230 |
| Rotating speed(r/min) | 10 |
| Travel speed(km/h) | 6.2 (max) |
| Maximum digging height(mm) | 10120 |
| Maximum digging distance(mm) | 11135 |
| Maximum digging depth(mm) | 7425 |
| Emissions (Indicated as per international standards) | TIER 3 |
