Key Specifications
Overview of the technical specifications.
Operating Weight
97.8 ton
Engine Power
571 kW / 1800 rpm
Bucket Capacity
6.5 m³
Track Shoe Width
650 mm

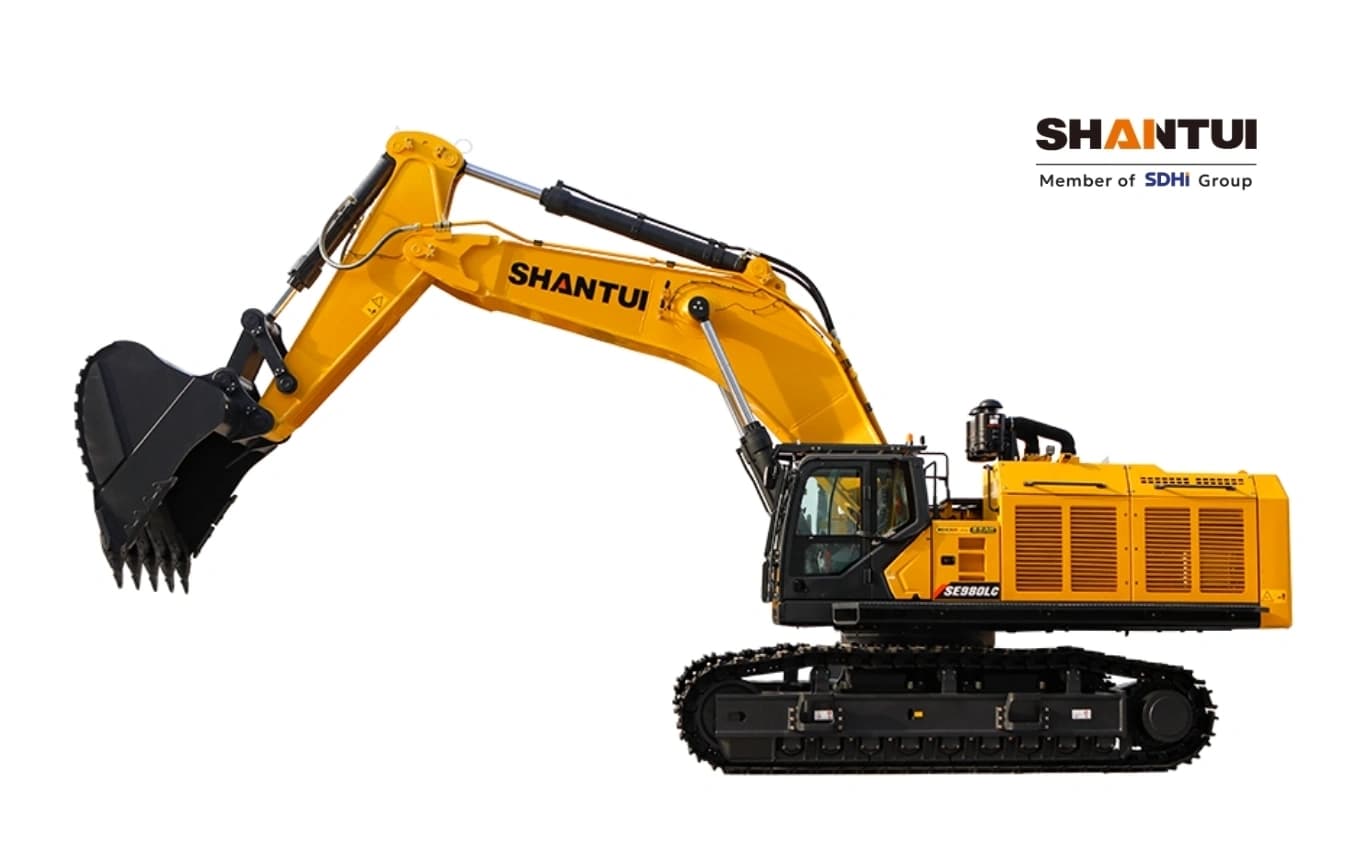

| Parameter | SE980LCW |
|---|---|
| Operating weight(kg) | 97800 |
| Engine power(kW/rpm) | 571 / 1800 |
| Bucket capacity(m³) | 6.5 |
| External dimensions(mm) | 13720*4200*4990 |
| Bucket rod digging force(kN) | 417 |
| Bucket digging force(kN) | 480 |
| Rotating speed(r/min) | 0-6.9 |
| Travel speed(km/h) | 2.8 / 4.1 |
| Maximum digging height(mm) | 12735 |
| Maximum digging distance(mm) | 12620 |
| Maximum digging depth(mm) | 7150 |
| Emissions (Indicated as per international standards) | EU Stage IIIA |
